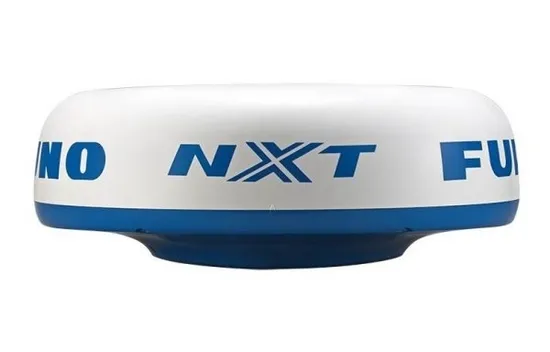

24" RADOME RADAR SENSORModel DRS4D






For Recreational Boats For Fishing Vessels For Workboats

Ultra High Definition (UHD™) Digital Radar


FURUNO has taken its NMEA award-winning radar technology to the next level with Ultra High Definition Digital Radar. UHD™ offers crystal clear, noise-free target presentation with automatic real-time digital signal processing. Antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length. Commercial-grade radar performance is now available in the ultimate MFD navigation suite.







Features



4kW, 36 n.m. Radar Antenna for NavNet series in a stylish 24" Radome



Ultra High Definition (UHD™) Digital Radar offers crystal clear, noise-free target presentation with automatic real-time digital signal processing



Real-time digital auto Gain/Sea/Rain controls to deliver noise-free radar presentation



Radar antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length



Simultaneous scanning technology drives our powerful dual-range radar, providing unsurpassed target detection.

With each sweep of antenna, dual progressive scan transmissions are sent, received and processed to display two separate radar ranges on your NavNet TZtouch / 3D display simultaneously. Each radar presentation acts autonomously, allowing for manipulation of individual gain and clutter controls



Radome incorporates a Network port to which certain Furuno network sensors; including the SC-30 Satellite Compass, and GP-330B GPS receiver, can be directly connected.

Power for these networked sensors is supplied directly from the radome itself, allowing for flexible installation of multiple sensors without the need to run cables all the way to the main processor unit





Specifications

ANTENNA





Peak Output Power

4 kW



Type

ø610 mm Radome (24'')



Frequency

9410 ± 30 MHz



Beam Width (Horizontal)

4.0°



Beam Width (Vertical)

25°



Range Scales

0.0625 to 36 nm



Antenna Rotation Speed

24/36/48 rpm



Weight

7.5 kg





ENVIRONMENT





Temperature

Temperature: -30°C to + 55°C



Waterproofing

IP26





POWER SUPPLY





Power Supply / Consumption Current

TZT9/TZT14/TZTBB: PSU-012, PSU-017
MFD8: Not required (Power Provided by the Display Unit)
MFD12: Not required (Power Provided by the Display Unit)
MFDBB: Not Required (Power Provided by the BB Processor Unit)







Equipment List

Standard


 RADAR SENSOR
RDS4D-E
1 UNIT

 STANDARD SPARE PARTS, INSTALLATION MATERIALS,
ACCESSORIES AND MANUALS
1 SET

 RADAR SENSOR CABLE ASSY
10/15/20/30 M
1 SET


Option


 NMEA2000 HEAVY CABLE ASSY1 M
2 Ｍ
6 M

 NMEA2000 LIGHT CABLE ASSY1 M
2 Ｍ
6 M

 RADAR SENSOR CABLE ASSY10 M
15 Ｍ
20 M
30 M

 NETWORKJ CABLE ASSY2 M
5 Ｍ
10 M

 RECTIFIER (CHINA)PR-62 (110/220 VAC)
RI-1746B2 (220 VAC)
RU-3423 (110
